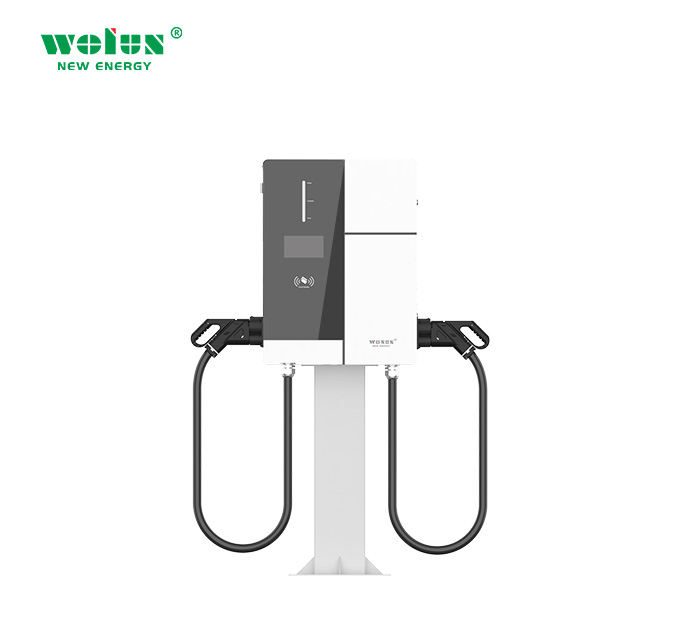

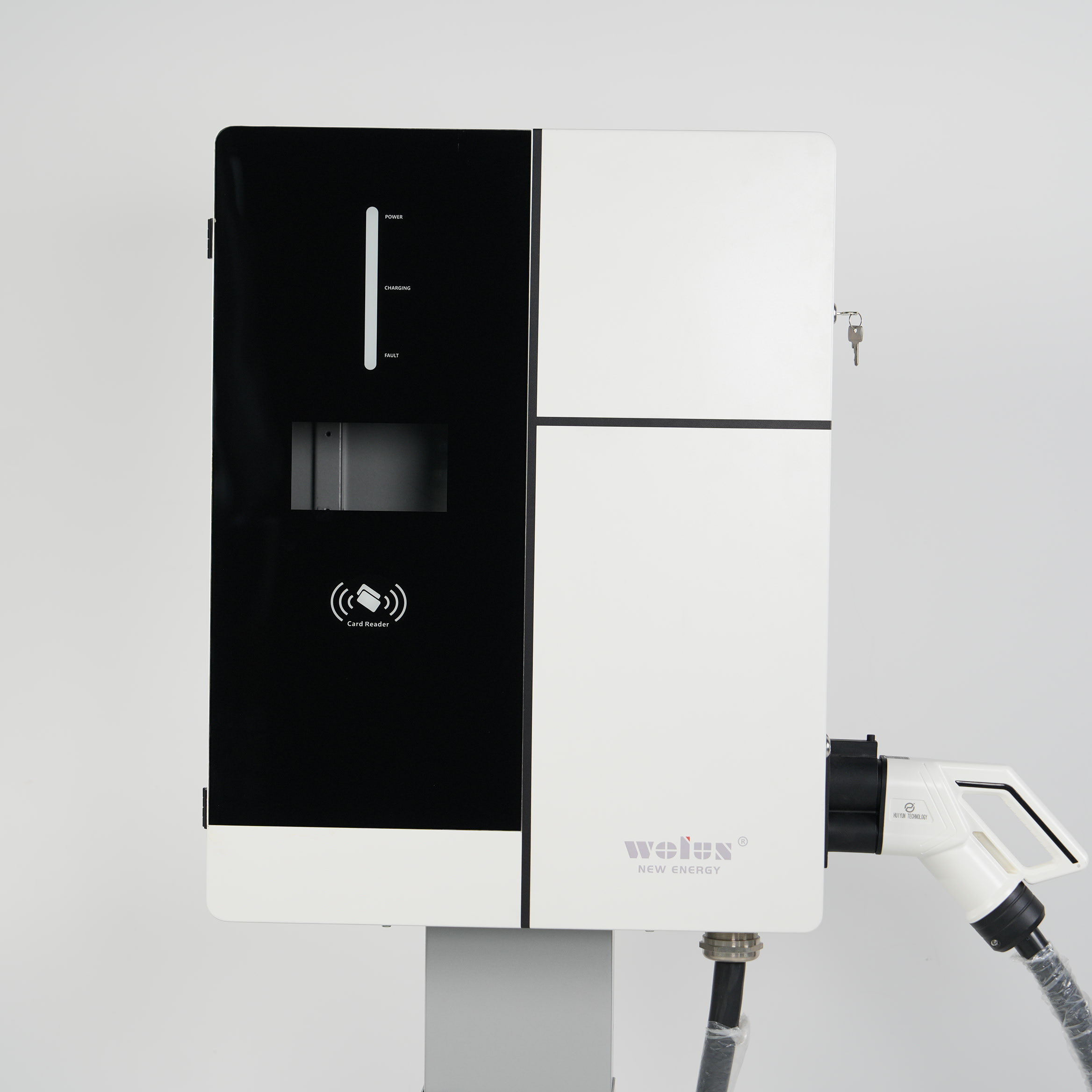

Home Commercila Use OCPP1.6J RFID Card IP54 DC Car EV Charging Station 20kW to 60kW
Efficient Charging Solutions
DC EV Charging Station
EV Charging Station Business
Connector Type CCS2/CCS1/GBT
RFID+OCPP
4G/LAN Port
Credit Card Payment
Fast ChargEfficient Charging Solutions
Commercial DC EV Charging Station
Fast Charging
IP55, IK10
POS Terminal
E-Stop Button
- Overview
- Related Products
User-friendly interface,high-power charging capabilities, advanced features and reliable performance.Suitable for small businesses, office complexes, and public parking areas.Essential for the rapid growth of the electric vehicle market.
| Models | WLE1112-DC20kW | WLE1112-DC30kW | WLE1212-DC40kW | WLE1212-DC60kW |
| RatedPower | 20KW | 30KW | 40KW | 60KW |
| ChargingOutlets | CCS/GBT/CHAdeMO | |||
| ShellMaterial | SPCCCarbonSteel | |||
| ACinputvoltage | 380V±15%/400V±10%/480V±10P+N+PE | |||
| ACinputfrequency | 50Hz/60Hz | |||
| MaxOutputvoltage | CCS1000Vdc,GBT1000Vdc,CHAdeMO500Vdc,3P+N+PE | |||
| MaxOutputCurrent | CCS300A,GBT250A,CHAdeMO125A | |||
| Numberofplugs | DC*1 | DC*1 | DC*1/DC*2 | DC*1/DC*2 |
| ProtectionLevel | IP55 | |||
| IKRating | IK10 | |||
| OperatingTemperature | -30°Cto+50°C | |||
| Storagetemperature | -40°Cto+70°C | |||
| Communication | OCPP1.6J（UpgradableOCPP2.0） | |||
| HMI | 7InchLCDScreen | |||
| ConnectivityAuthorization | RFID,APP,POS | |||
| InstallationMethod | Wall-mounted/Column | |||
| CableLength | 5mor7m(optional) | |||
| Functionaldesign | Ethernet/RS485/WIFI/4GCommunication(custom) | |||
| AcousticNoise | ＜60dB | ＜60dB | ＜60dB | ＜60dB |
| Altitude | ≤2000m | |||
| Dimension(L*W*H) | 727*341*800mm | |||
| Weight | ≤180kg | |||
| ChargingInterface | DIN70121/DIN70122/ISO15118 | |||
| Certificate | TUVCE/ENIEC61851-1,IEC61851-21,IEC61851-23.IEC61851-2014/30/EU2014/30/EU24,LVD2014/35/EU,EMC 2014/30/EU | |||
